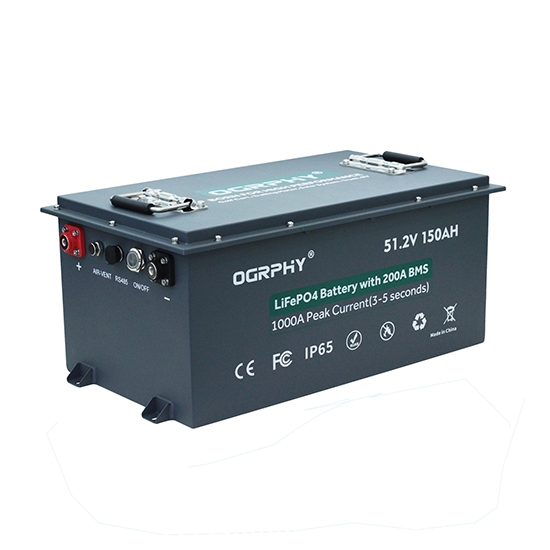

OGRPHY 48V150AH Lithium Golf Cart Battery Conversion Kit
WISHLIST
【1】OGRPHY 48V 150AH LiFePO4 battery holds 7.68kWh power, supports a 3kw golf cart drives 70 miles or more.
【2】OGRPHY upgraded the BMS built in 48V 150Ah golf cart battery to a high performance 200A BMS with 1000A peak current(3-5s), 300A (32s), 600A(30s).

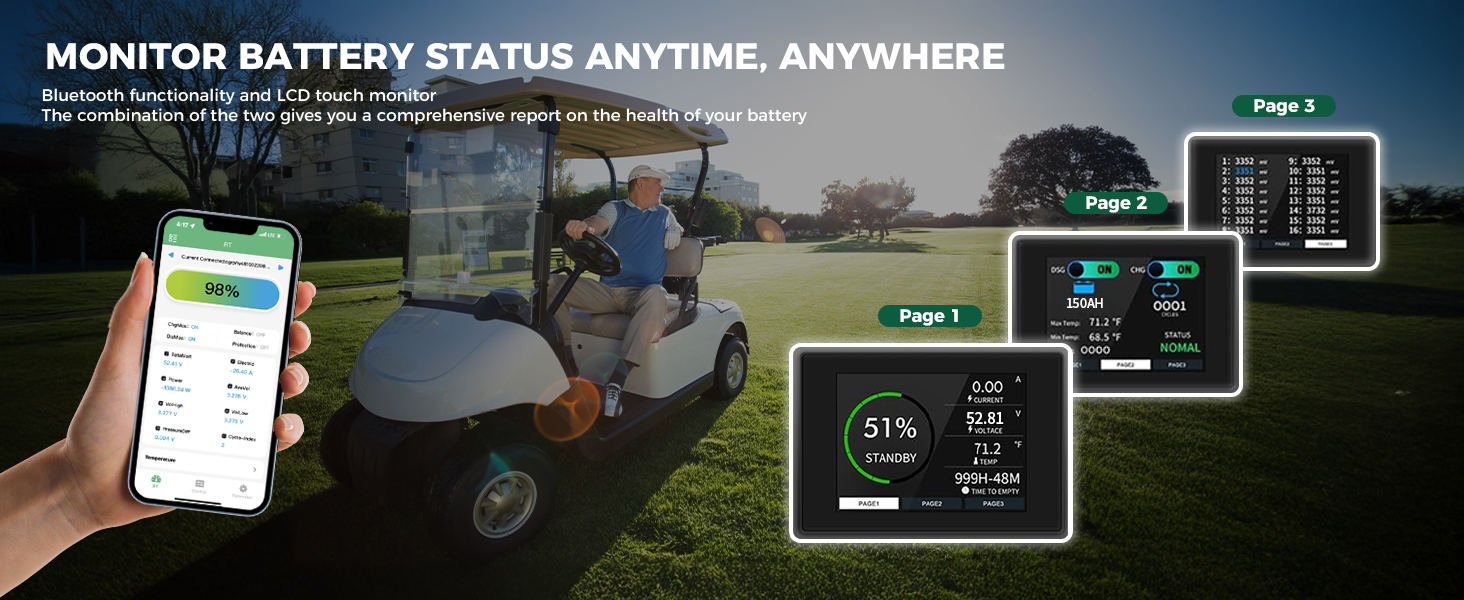

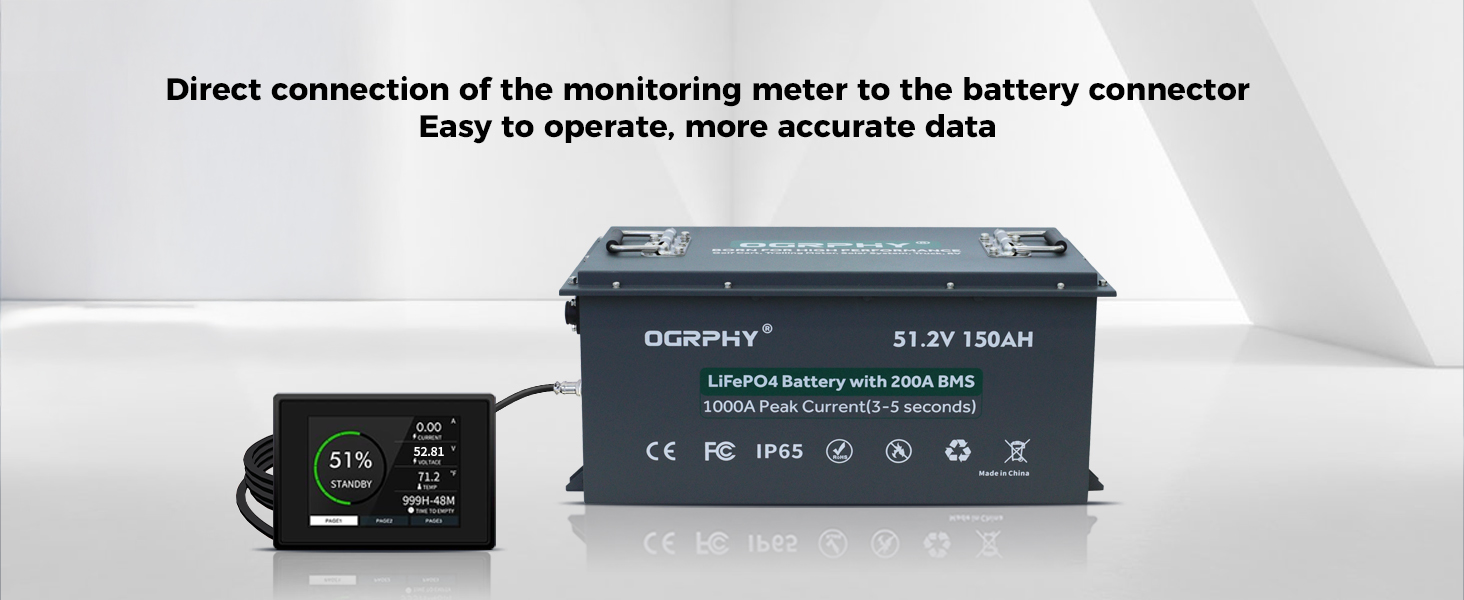

【3】The system is equipped with dual monitoring modes of LCD Touch Monitor and Mobile APP. It can be monitored through the touch display that comes with the battery, or the battery status can be viewed via the application on the mobile phone.
【4】 Designed specifically for 48V golf carts, made of high-density A-grade cells for high energy(2C Discharge) and performance, The battery case is made of ABS, which is fireproof shockproof and IP65 waterproof, Compatible with all major brands of golf cart controllers, it is born for golf carts, electric vehicles, marine engines and other applications.
【5】All in One Package:One new 48V 150AH LiFePO4 battery, one 48V 18A lithium battery charger, one touch monitor and screen stand，one retantion strap.
【2】OGRPHY upgraded the BMS built in 48V 150Ah golf cart battery to a high performance 200A BMS with 1000A peak current(3-5s), 300A (32s), 600A(30s).
【3】The system is equipped with dual monitoring modes of LCD Touch Monitor and Mobile APP. It can be monitored through the touch display that comes with the battery, or the battery status can be viewed via the application on the mobile phone.
【4】 Designed specifically for 48V golf carts, made of high-density A-grade cells for high energy(2C Discharge) and performance, The battery case is made of ABS, which is fireproof shockproof and IP65 waterproof, Compatible with all major brands of golf cart controllers, it is born for golf carts, electric vehicles, marine engines and other applications.
【5】All in One Package:One new 48V 150AH LiFePO4 battery, one 48V 18A lithium battery charger, one touch monitor and screen stand，one retantion strap.
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
Filter
Sort by
Images
Rating
Specification
Nominal Voltage
51.2V
Charge Voltage
56.8V-58.4V
Nominal Capacity
150Ah
BMS Board
200A
Energy
7680Wh
Max Load Power
10.24kW
Recommend Charger Current
30A
Max Continuous Discharging Current
200A
Charging Temperature
0℃-55℃
Discharging Temperature
-20℃-60℃
Dimension
19.3(20.5)*12.6(13.7)*8.6 inch
Weight
119 lbs
User Manual
Product Information
Note
DO NOT short circuit
DO NOT reverse charging
DO NOT disassemble
DO NOT drop
DO NOT expose to heat or immerse in water
Away from kids and pets
