【1】Designed specifically for 36V golf carts, compatible with controllers of major brands of golf carts in the market.

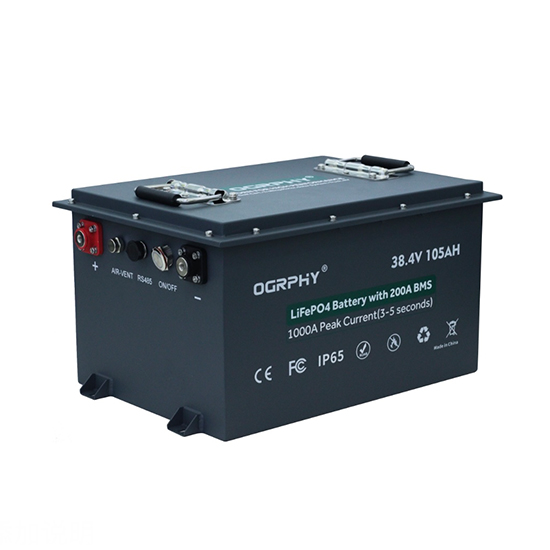

【2】Built in premium grade A prismatic LiFePO4 cells(UL certified),with a capacity of over 4kWh, maximum continuous output of 7.68kW and peak power of 38.4kW.

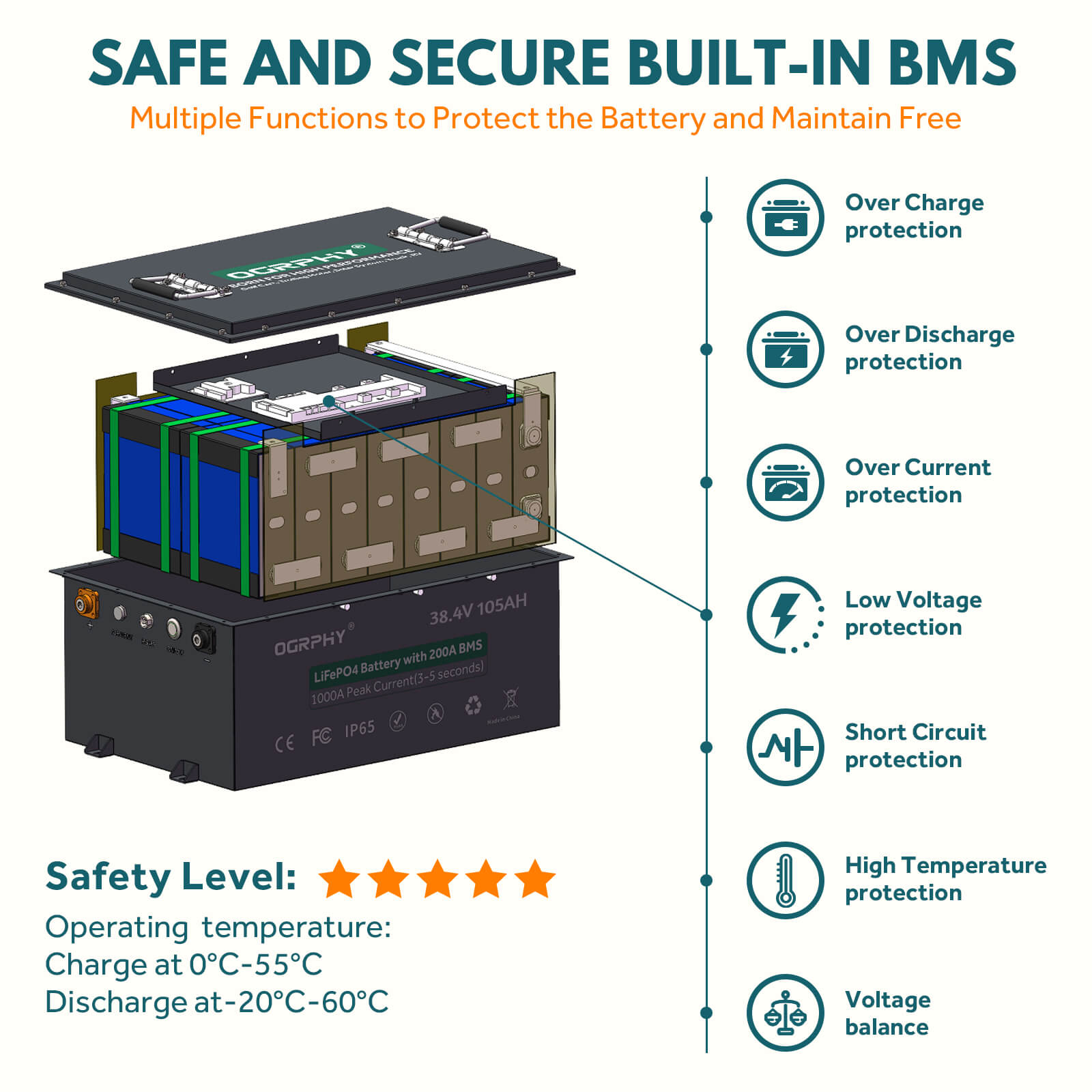

【3】The built-in 200A BMS can handle peak currents of up to 1000A (38.4 kWh) for a duration of 3-5 seconds (600A for 30 seconds, 300A for 32 seconds, and 200A continuous current).
【4】The battery has a capacity of 4.03kWh. OGRPHY 36V 105AH lithium battery was able to run a golf cart with 3kw motor for 30-50 miles under tests.
【5】4000+ deep cycles and 80% DOD: It has a lifespan that is over 10 times longer than traditional lead-acid batteries, and is also superior to many other brands of lithium iron phosphate batteries.
【6】The new size model is: 15.7L x 11.6W x 8.66H inch.We have optimized the battery structure, which has a more compact size enabling it to be compatible with a wider range of golf car models.
【7】Equipped with a 38.4V 25A lithium battery charger. It features fast charging and 0V charging functions, enabling the 36V LiFePO4 battery to be awakened under low voltage protection. From 0% to 100% charging, the charging time is less than 5 hours.

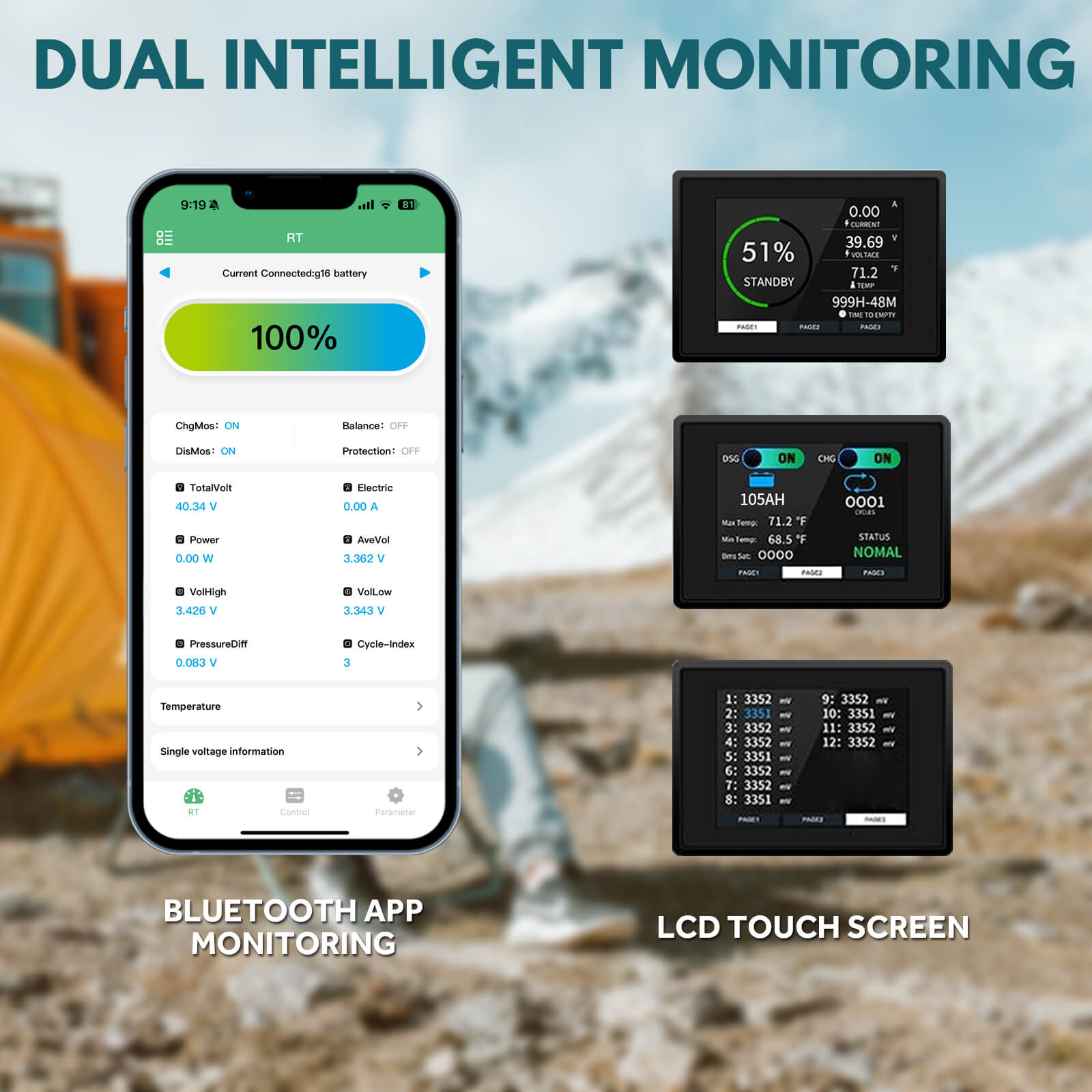

【8】The system is equipped with dual monitoring modes of LCD Touch Monitor and Mobile APP. It can be monitored through the touch display that comes with the battery, or the battery status can be viewed via the application on the mobile phone.
